Simple and Quick Photogrammetry Reports in Pixpro Software

Pixpro Team Lukas Zmejevskis
Jun 28, 2023

Pixpro photogrammetry software has a simple but handy feature called print to a snapshot. This feature lets you get your project data onto a simple, easily printable document - a basic report. In many cases, this is the desired result for many people. An easy way to share measurement findings is via email, printed documents for the field, or just showing it to someone without opening a project. This article will teach you how to use the print-to-snapshot feature and showcase a few examples.

Preparing The Project

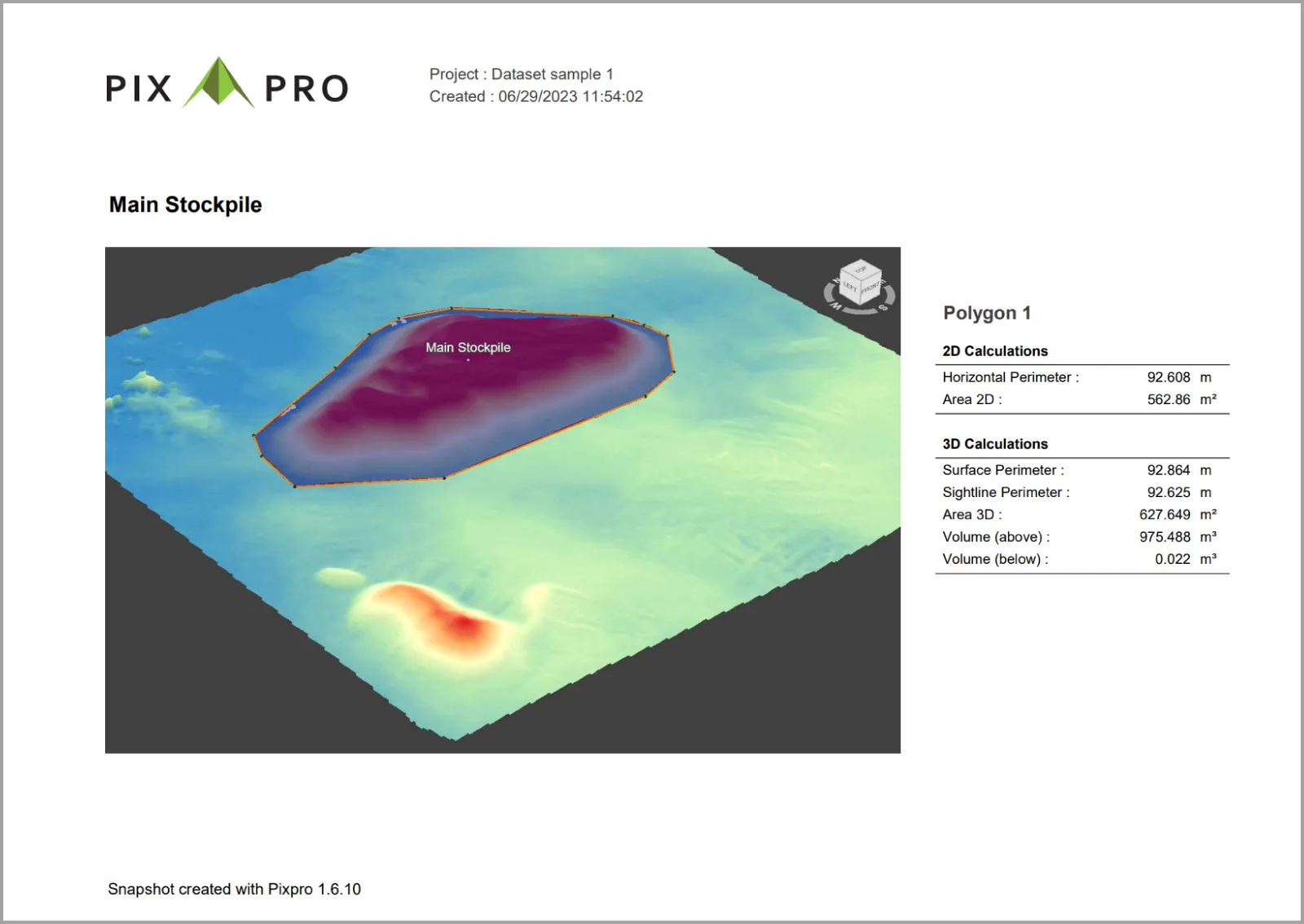

Pixpro prints to snapshot works by taking a screenshot of the current 3D view and putting that into a PDF document. So everything you can see in the window at your current orientation and zoom - will be visible in the snapshot. However, if an object is selected, you can see the option to include its measurements. It applies to linear measurements - line objects and volume-area measurements - polygons.

Graphical Options

Every graphical option and layer that changes something in the 3D view is a tool to alter what you see in the snapshot. These options include:

  • Turning on or off any layer in the layers panel. The layers panel contains your generated and drawn items in the project. From sparse point cloud to a drawn polygon - you can display any layer and produce a snapshot of it.
  • Layer-specific graphical options - each layer has some different display characteristics to choose from. We will go into more detail in the next section.
  • Global options - going to Tools > Options allows you to change settings that will alter key software aspects, such as units, which will reflect in snapshots. You can explore the graphics options tab to customize the 3D view background and default colors and sizes for drawn objects.
  • The size and shape of your software window will influence the screenshot part of the PDF.

Other things such as open panels, toolbar, or other windows like options, photo manager, or anything third party do not reflect in the snapshot.

Layer Specific Graphics

Many layers in Pixpro have some customizable graphical properties. Every customization will reflect immediately in the 3D view without changing any actual data and, therefore, will be visible in the snapshot. When a layer is selected, these options appear in the properties panel on the right. Here is a summary of the available graphical options for each layer:

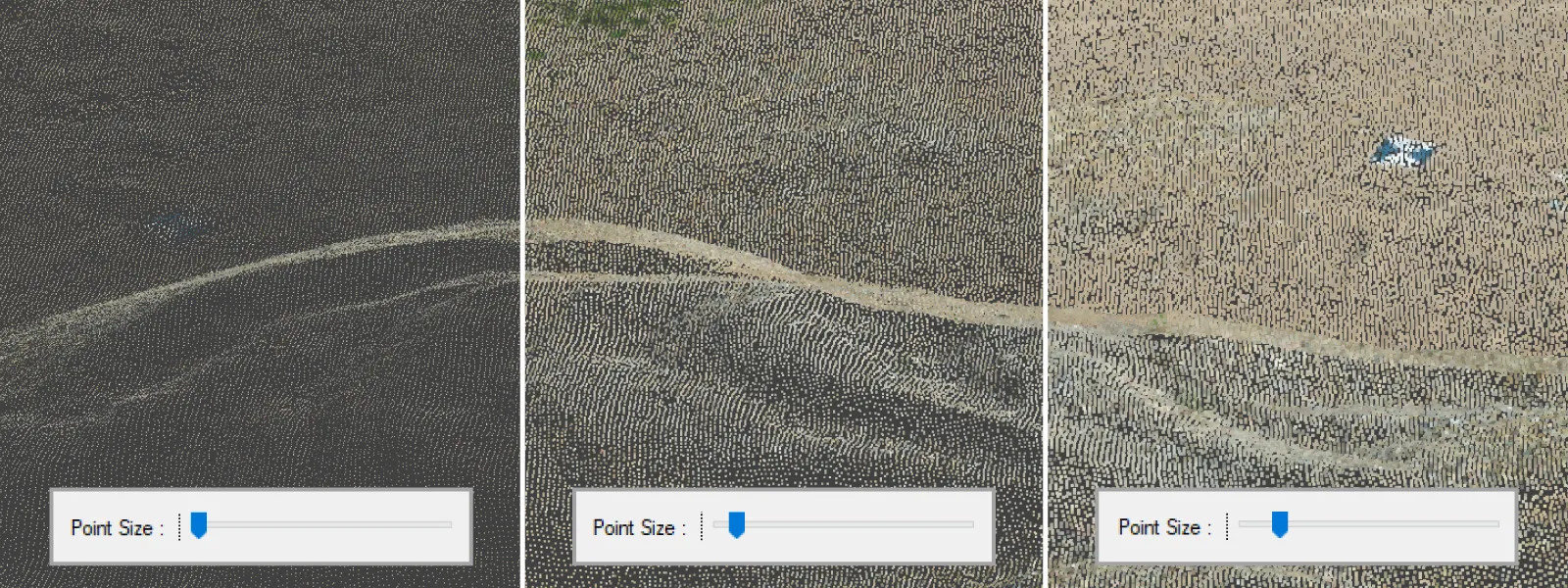

Point clouds: Point type and size are adjustable.

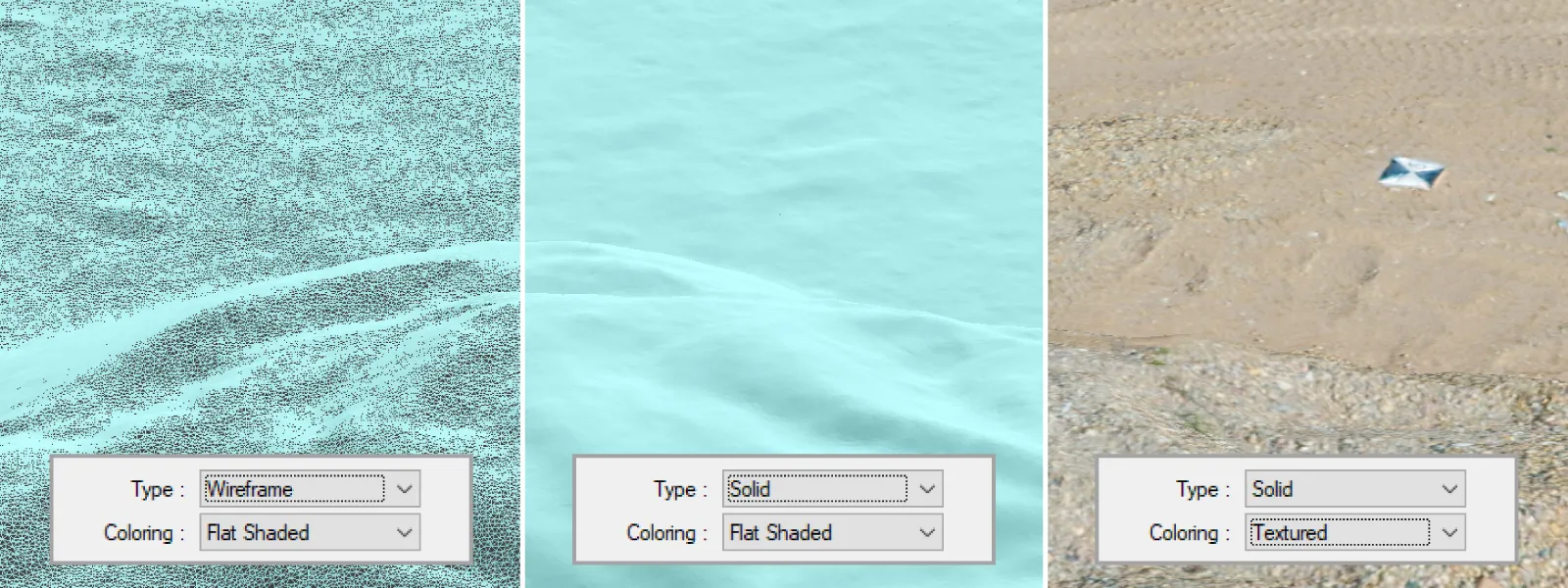

Meshes: You can change the type from solid to wireframe and coloring from flat to texture.

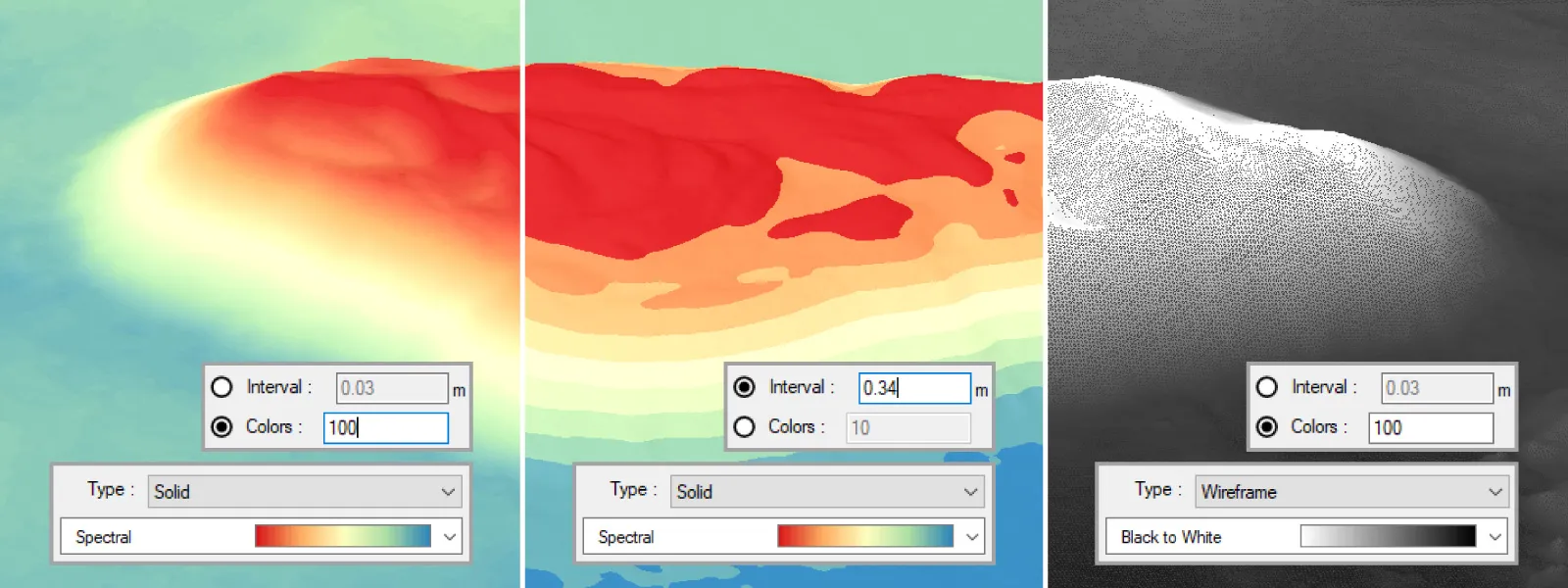

Digital Elevation Maps: Digital elevation maps have the most graphical options. Type from solid to wireframe. Coloring - flat, gradient, or orthophoto (if an orthophoto layer is available). The gradient coloring in itself has many color schemes and an adjustable histogram. You can also choose the height interval or the number of colors in a gradient.


Contour lines: You can change the color of the contour lines.

Points: Each point has a color and radius option. And crucially, points can have annotations. You can enter any text in the description field, adjust the font size, and the annotation will appear in the 3D view next to the point.


Lines: Each line vertice has the same options as a point, and the line has color and weight options.

Polygons: Same options are available as with lines. Remember - you can change the initial default values in the options for both objects. Polygons do have a global transparency setting too.


Short Tutorial

We created a short video on how to use the snapshot feature in Pixpro:

Conclusion

Now you know how to use the snapshot feature in Pixpro photogrammetry software, and it will come in handy at some point. Creating a basic PDF file or printing it directly on physical paper takes just a few seconds. A simple report with volumes or lengths of a critical area will provide everything you need for simple documentation or monitoring. You can try this feature now for free with our 14-day trial.

About the author
Lukas Zmejevskis

Photographer - Drone Pilot - Photogrammetrist. Years of experience in gathering data for photogrammetry projects, client support and consultations, software testing, and working with development and marketing teams. Feel free to contact me via Pixpro Discord or email (l.zmejevskis@pix-pro.com) if you have any questions about our blog.
