DJI Lito X1 for Photogrammetry

Can the Lito X1 be used for photogrammetry? Yes it can. Can it produce good results? Yes it can. How to do it? Yes it… well, that is what the rest of this article is for. I will share my basic workflows across three different approaches: manual, semi-automated, and fully automated photogrammetry using Pixpro Waypoints. These of course apply to all current DJI drones, and the smallest and cheapest Lito X1 is just as capable, making it my default beginner aerial photogrammetry recommendation for everyone.

Photogrammetry Fundamentals

Photogrammetry stands on a few fundamental principles, all relating to the input data:

1. High quality photos. No motion blur, no over/under-exposure, proper focus, low noise, and accurate colors. In short: good photos.

2. Photo overlap. Want it in 3D? It must be visible in five photos or more. That is a rough conceptual explanation of the 80 percent overlap we expect in photogrammetry.

3. Coverage. Still want it in 3D? The entire subject must be covered with that same 80 percent overlap.

All of these fundamentals depend on technique, not on the gear. The Lito X1 is just a 250 gram flying camera with a remote controller. A tool entirely dependent on its wielder. Processing with most photogrammetry software (especially Pixpro) is easy. It is just a matter of clicking a few buttons. When you provide good input data, that is all you will need.

Manual Photogrammetry with the Lito X1

You can use any camera for photogrammetry, and if it does not have tools specifically tailored to help with 3D scanning, you go full manual. For this article I did a hybrid scan: I flew the Lito X1 manually while taking photos in interval mode, and I also took the drone in hand around the subject building for additional low-down data.

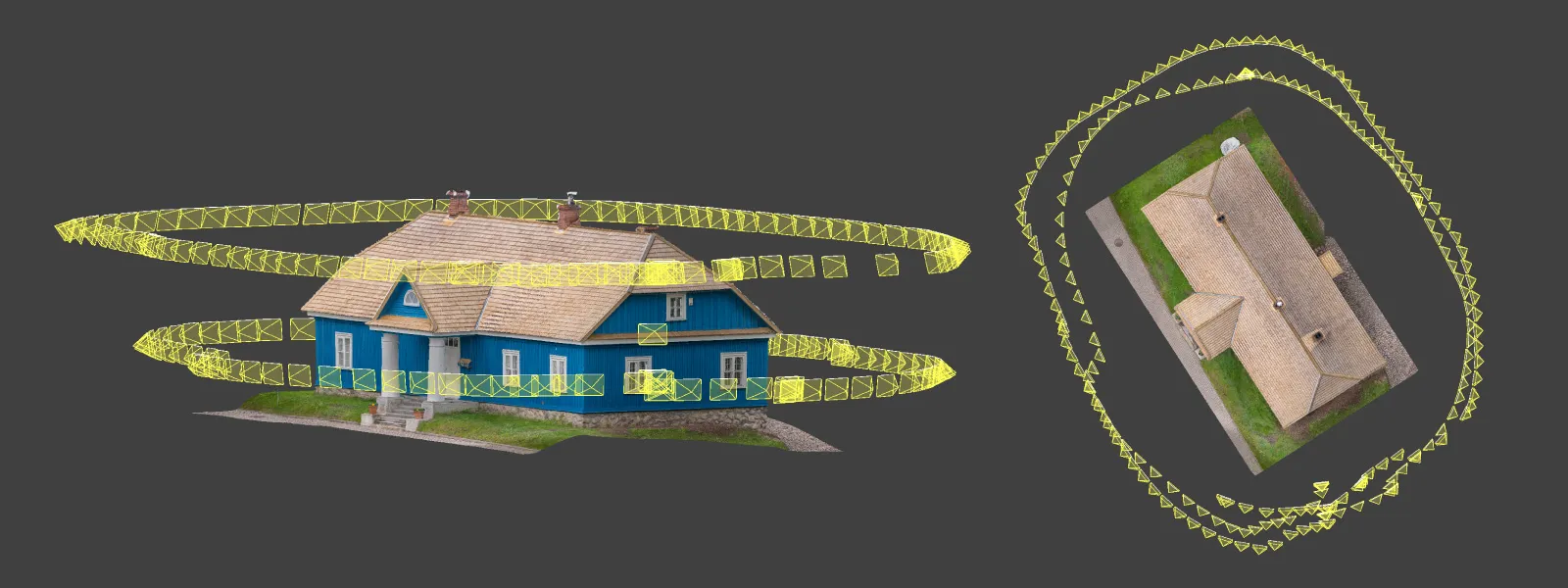

My technique was simple. For the flight part, I set the drone to Cine mode, which is a slower and smoother flight mode, set the camera to a 2-second interval photo capture, and slowly flew around the middle part of the building twice, with the camera facing straight forward at it.

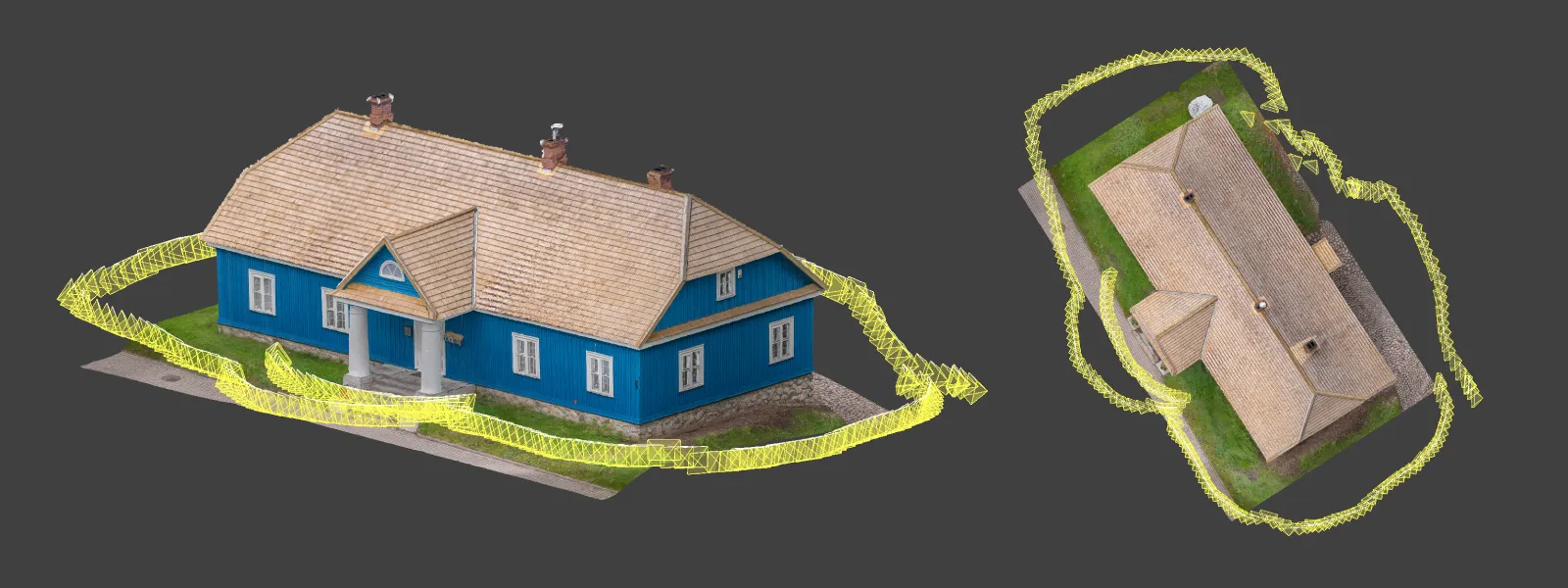

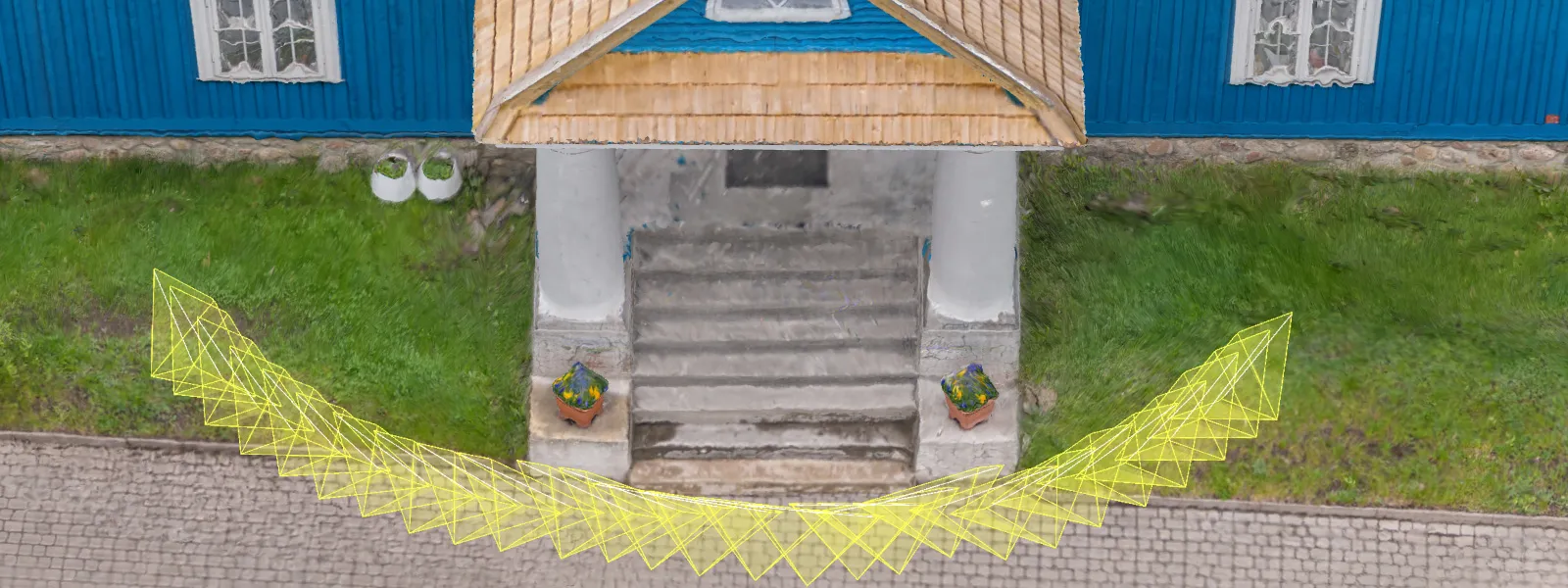

For the walking part, I folded the drone arms, kept the same interval capture, and pointed the camera upwards 35 degrees, the maximum the Lito X1 gimbal allows. I just took a large step each time the drone took a photo and walked around the building, pointing the drone body slightly upwards as well so I did not hit the gimbal tilt limit accidentally. Yes, the camera stabilization works perfectly even when the drone is just handheld. I did a short additional walk around the entrance as well.

Yes, we would like everything to be automated, but there is no going around manual photogrammetry completely. The good news is that it is not difficult. Keeping the overlap precisely at 80 percent is not a requirement, especially when it is complementary data like in my example.

Taking good photos is also not an issue with modern cameras. For this example I used a reasonable, fixed camera setting of ISO 100 and a shutter speed of 1/400 of a second, which was good for overcast mid-day conditions. I shot RAW so I could slightly tweak the photos in post-production using Adobe Lightroom Classic. This applies to all photos I took for the purposes of this article.

Semi-Automated Capture

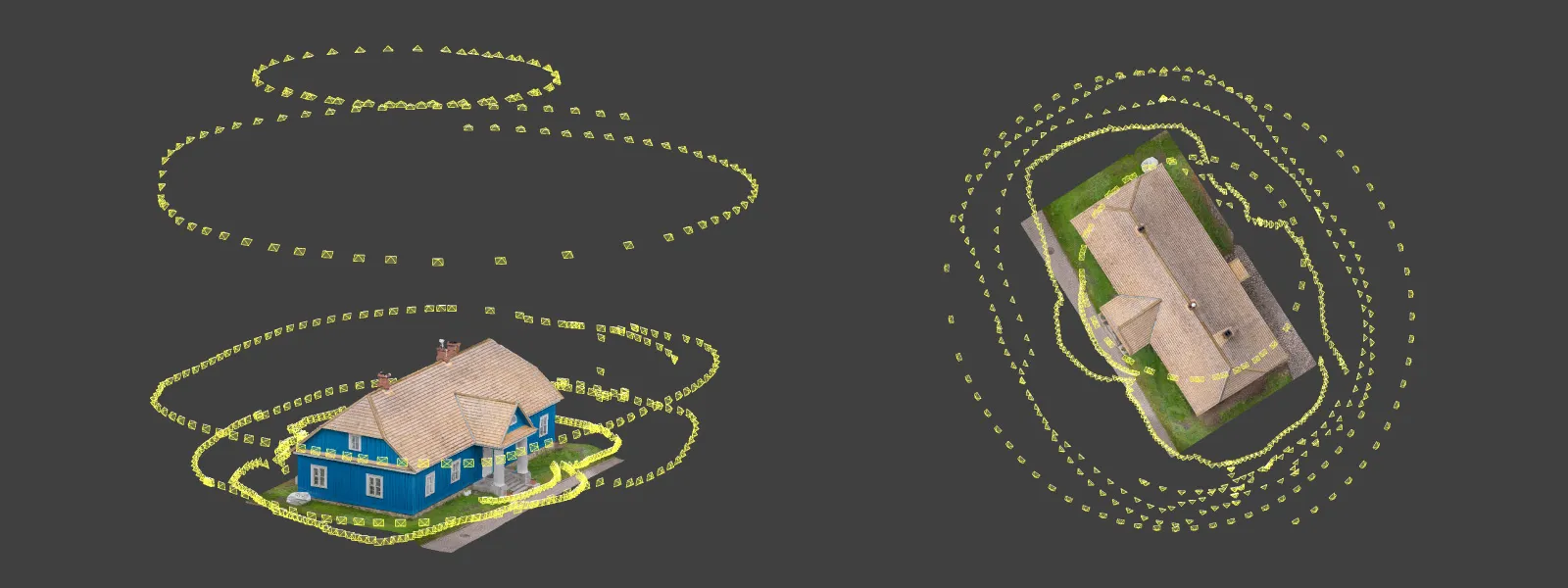

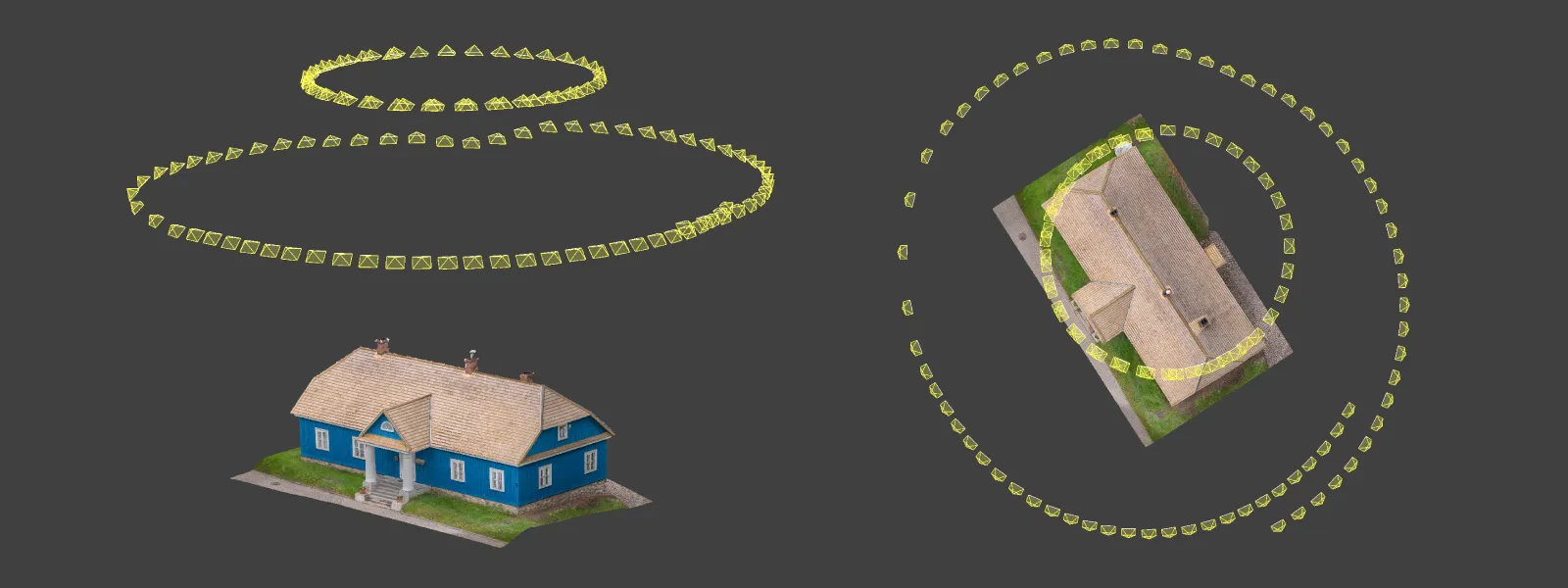

I call hyperlapse capture semi-automation. With DJI's circle hyperlapse mode you can select a subject on screen to track, then fly around in circles for the purpose of creating a hyperlapse video. However, you can choose to save the original RAW photos and use those for photogrammetry. With this subject in particular, I did two hyperlapse orbits above the building to capture the surrounding area and the overall structure.

DJI drones have additional automation tools like interval capture combined with cruise control, other hyperlapse modes, and waypoints. The most powerful of these is waypoints used with the Pixpro Waypoint workaround, which gets you as close to full automation as we can manage.

Pixpro Waypoints

If you do aerial photogrammetry you should know about Pixpro Waypoints. With our workaround you can keep the overlap perfectly consistent and the coverage exactly as needed. Without SDK and third-party app support from DJI, Pixpro Waypoints is the best solution for 3D scanning.

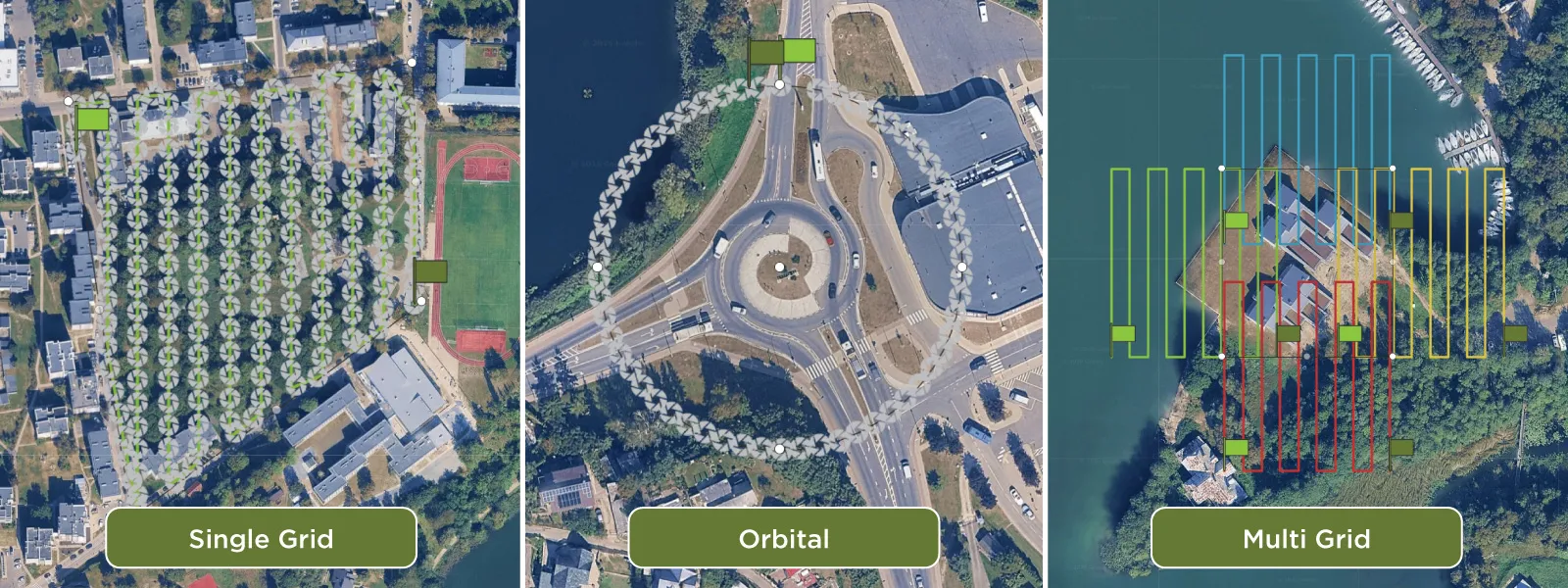

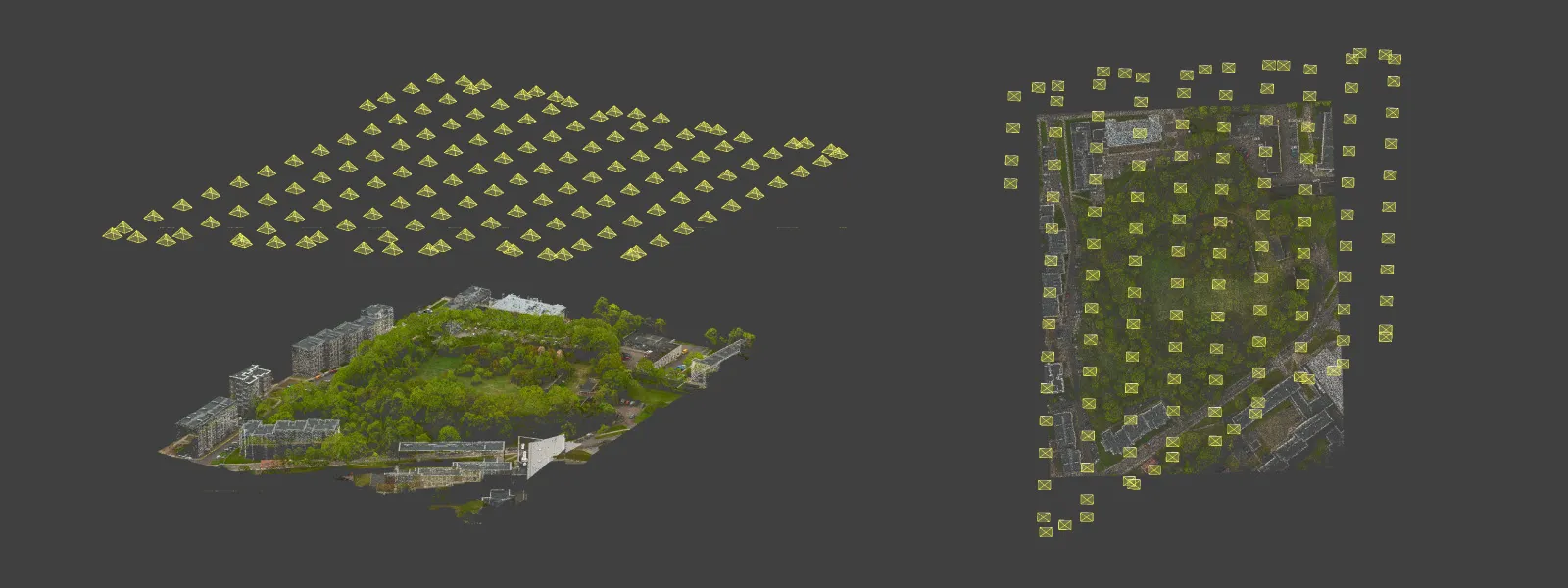

There are three flight plans to choose from. First, the classic grid, where you can change the drone orientation and camera angle, but nadir (camera straight down at 90 degrees) is the main purpose. This is what you use for making maps and true orthophotos.

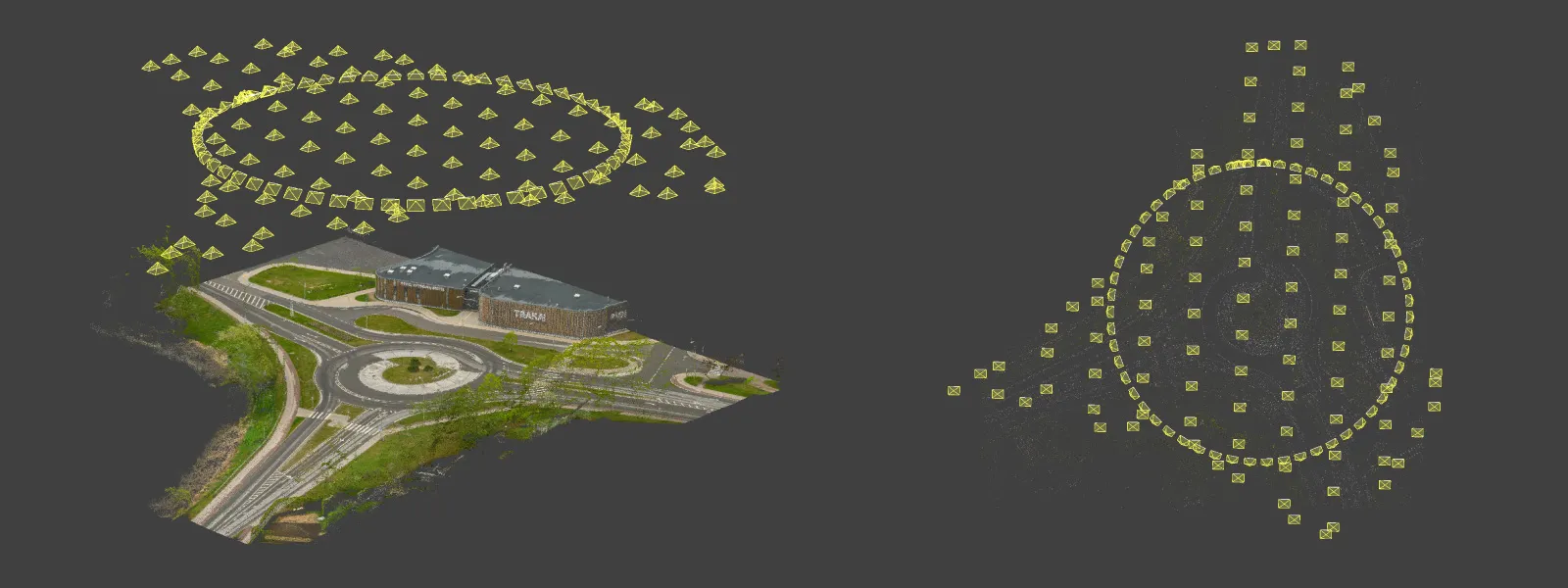

Second is the orbital flight plan, good for isolated objects like buildings or monuments. It can also be used to complement a nadir grid, helping the overall 3D structure and avoiding the bowing effect.

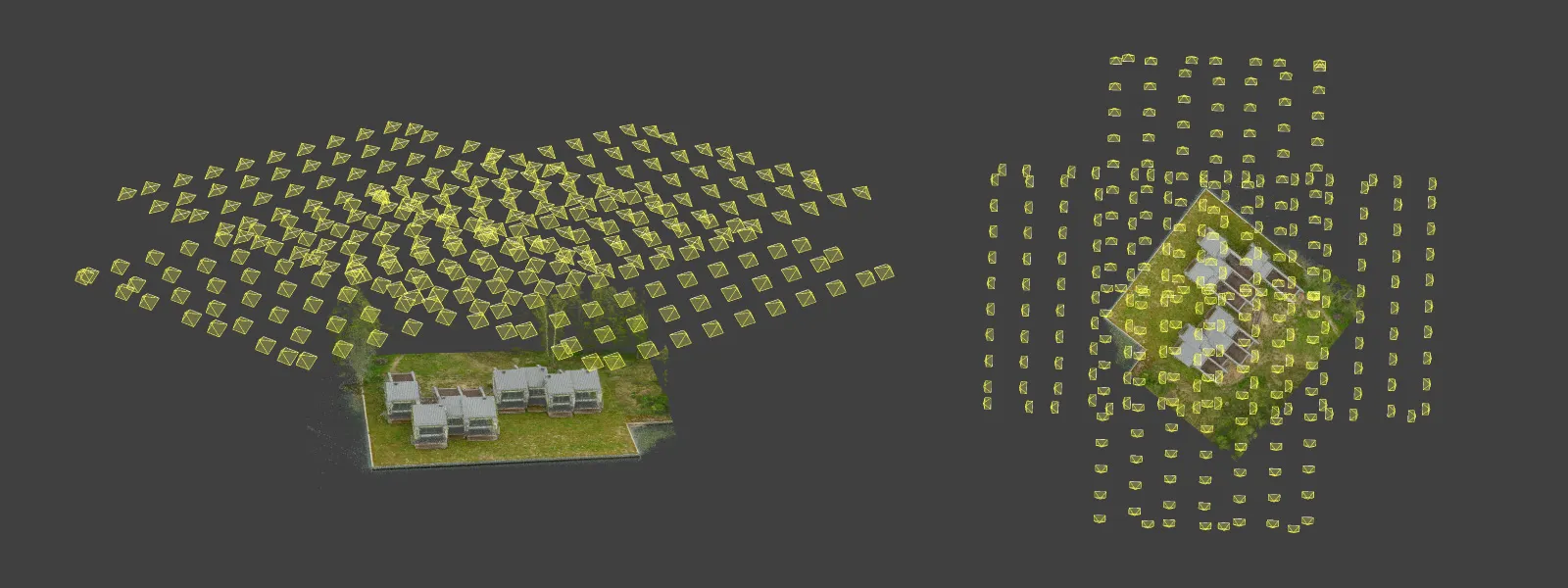

Finally there is the multi-grid option for full 3D goodness. When combined with a nadir grid, a complete 5-perspective scan can be achieved, giving the most amount of data. In the example below I did a multi-grid scan without an additional grid using the DJI Lito X1.

All of these samples were made in 12 megapixel mode, shooting RAW with 2 or 3 second intervals. The drone does not allow using 48 megapixels in timed shot mode, but that is a non-issue in my opinion. Flying lower but faster is a better option if you want to achieve the best resolution.

Data Analysis and Accuracy

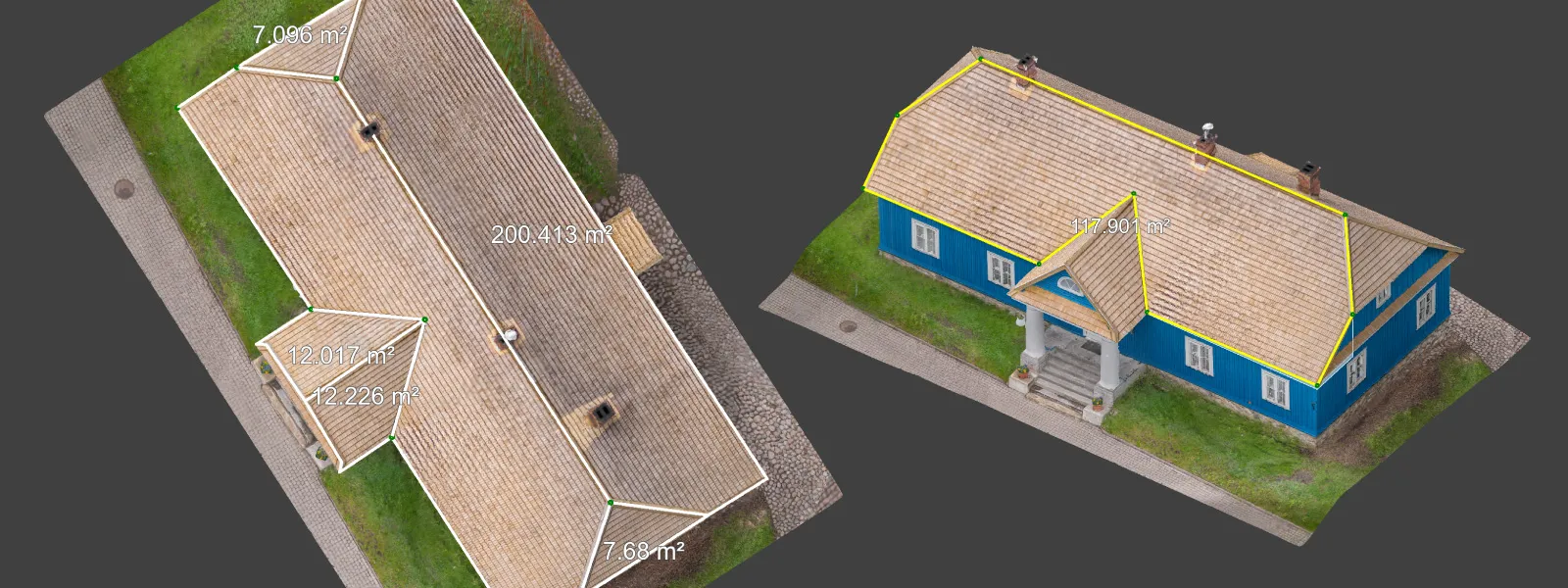

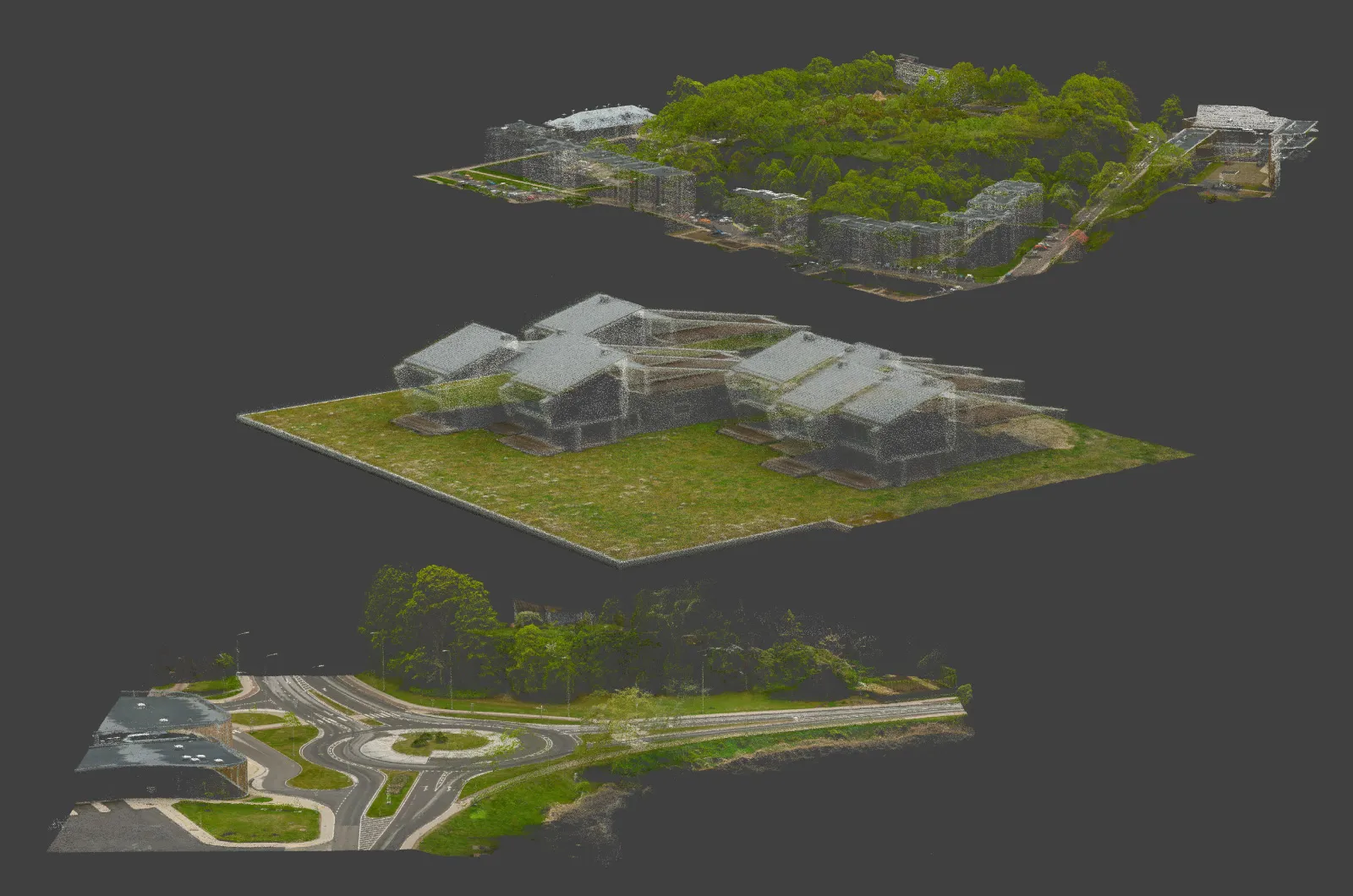

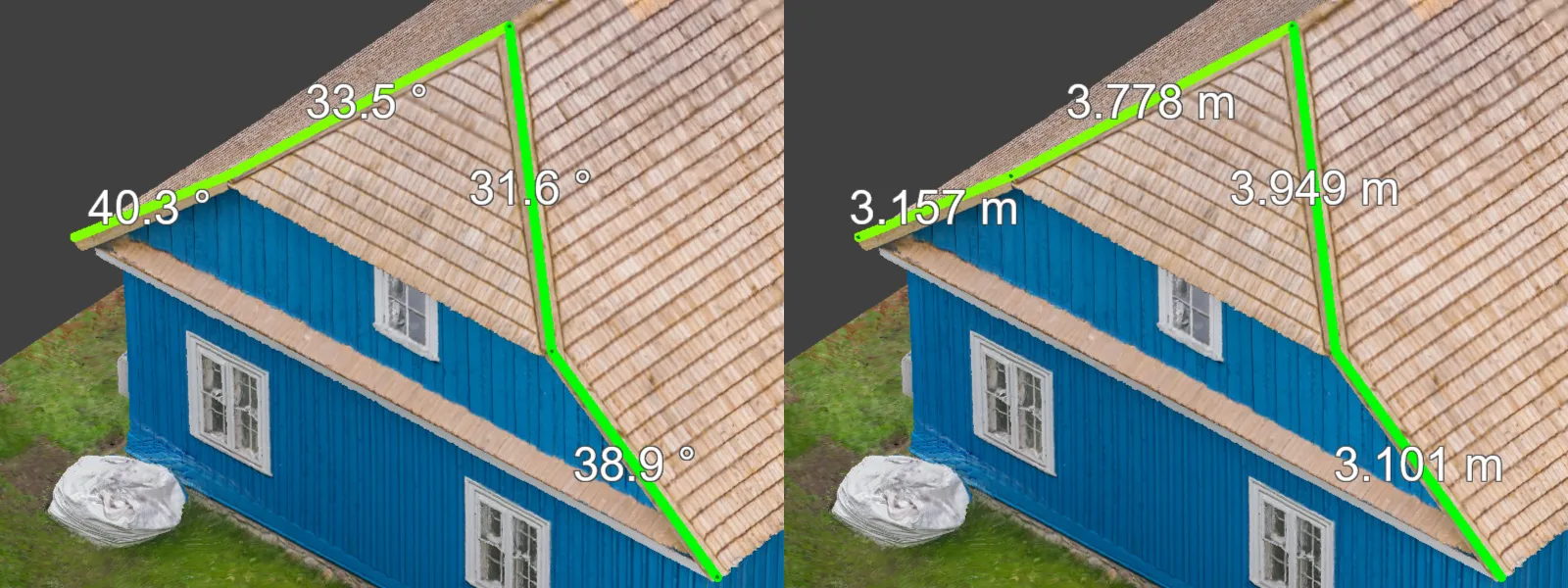

Pixpro photogrammetry software has all the essential analysis tools (position, length, and volume measurements) along with the export features you might need to continue working in other software. Typical deliverables include orthophotos, dense point clouds, 3D meshes, and digital surface models, all of which can be pushed into CAD, GIS, or inspection workflows.

Your data will be good no matter what drone you use, as long as you use the correct methods. For measurements you can expect high relative accuracy, and ±1 centimeter linear accuracy is achievable with the Lito X1 when paired with proper scanning technique. That is more than enough for site inspections, heritage documentation, small construction monitoring, and most asset documentation work, well within tolerance for the kind of jobs a 250-gram drone is realistically taking on.

Conclusion

Can the DJI Lito X1 be used for photogrammetry? Yes it can. Can it produce results that hold up against bigger, more expensive drones? Yes it can. Is it the only drone you will ever need? Yes it… probably is, if you are just getting started. The Lito X1 is small, cheap, and unintimidating. Across all three workflows (manual, semi-automated, and fully automated with Pixpro Waypoints), none of the limiting factors in aerial photogrammetry actually live inside the drone. They live in the technique. Get the fundamentals right and the Lito X1 will not be the thing holding your scan back.
